Product Series: Vertical machining center

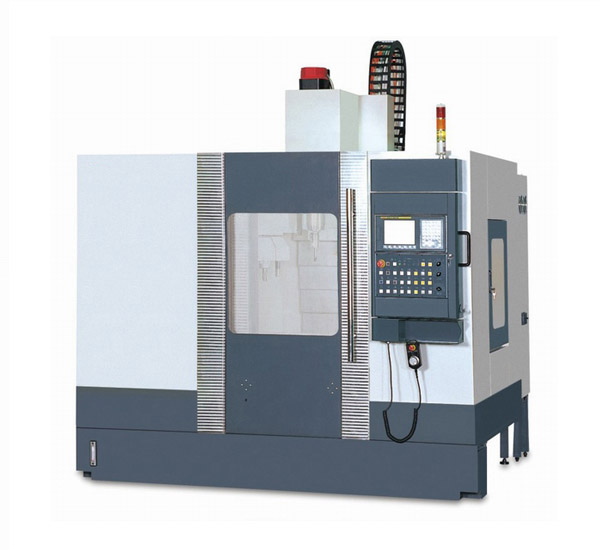

Machine Model	Unit	XK713	XK714	XK714A
Machine Model	Unit	XHK713	XHK714	XHK714A
Workbench Specifications
Clamping area with T-slots	mm	1000×400	950×460	1000×460
T-slot table		3-14×110	3-18×125	5-18×80
Table load	kg	500	400	500
Scope of work
X-axis travel	mm	600	660	800
Y-axis travel	mm	400	460	460
Z-axis travel	mm	500	620	550
Spindle end to table distance	mm	110-610	150-770	100-650
Axis to column surface distance	mm	457	480	525
Feed
Form guide		35/35/35	35/35/Hard track	35/35/35
Feed rate	m/min	8	10	10
Fast-moving	m/min	12	15	18
Positioning accuracy
Repeatability	mm	±0.005	±0.005	±0.005
Three-axis positioning accuracy	mm	±0.006/300	±0.005/300	±0.005/300
Spindle
Maximum speed	rpm	8000	8000	8000
Drive power	KW	5.5/7.5	5.5/7.5	7.5/11
Shank form		BT40	BT40	BT40
Standard magazine
Magazine structure		Robotic disc magazine	Robotic disc magazine	Robotic disc magazine
Tool storage capacity		20	20	20
Other
X.Y.Z axis roll		3205	4010	3208
Power Capacity	KVA	12	15	15
Machine tools gas source	MPa	0.5-0.7	0.5-0.7	0.5-0.7
Net / Gross	T	3/3.8	3.5/4.2	4.8/6.1
Overall dimensions	mm	2400/2290/2300	2450/2660/2730	2450/2660/2730
Control System		FANUC Oi mate-MD	FANUC Oi mate-MD	FANUC Oi mate-MD

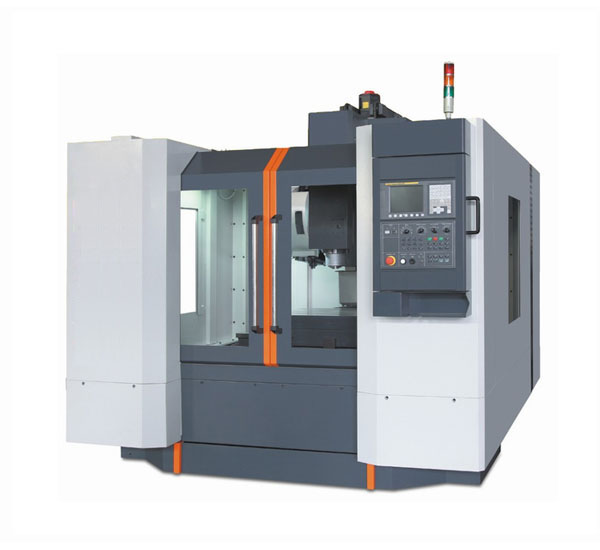

Machine Model	Unit	XK715	XK716B	XK717
Machine Model	Unit	XHK715	XHK716B	XHK717
Workbench Specifications
Clamping area with T-slots	mm	1000×500	1300×600	1500×700
T-slot table		5-18×85	5-18×100	5-18×140
Table load	kg	500	800	1500
Scope of work
X-axis travel	mm	850	1100	1350
Y-axis travel	mm	560	650	700
Z-axis travel	mm	600	600	650
Spindle end to table distance	mm	100-700	130-730	100-750
Axis to column surface distance	mm	614	697	820
Feed
Form guide		35/35/35	45/45/45
Feed rate	m/min	12	12	8
Fast-moving	m/min	24	24	15
Positioning accuracy
Repeatability	mm	±0.005	±0.005	±0.005
Three-axis positioning accuracy	mm	±0.005/300	±0.005/300	±0.006/300
Spindle
Maximum speed	rpm	50-8000	8000	6000
Drive power	KW	11/15	11/15	15/18.5
Shank form		BT40	BT40	BT50
Standard magazine
Magazine structure		Robotic disc magazine	Robotic disc magazine	Robotic disc magazine
Tool storage capacity		20	20	24
Other
X.Y.Z axis roll		4012	4012	5010
Power Capacity	KVA	18	18	25
Machine tools gas source	MPa	0.5-0.7	0.5-0.7	0.5-0.7
Net / Gross	T	6/7	7/8	10/12
Overall dimensions	mm	2480/2580/2364	3100/3020/2745	3900/3060/2650
Control System		FANUC Oi mate-MD	FANUC Oi mate-MD	FANUC Oi -MD

Machine Model	XHK1580	XHK1890
Table size mm	1700*800	2000*900
T-slot table	5-22*135	5-22*160
Maximum table load(kg)	1500	1600
Trip around(X)mm	1500	1800
Before and after the trip (Y)mm	800	900
Vertical stroke(Z)mm	700	680(800)
Distance spindle center to column guideway （mm）	860	1060
Spindle nose to table distance （mm）	140-840	160-840
X, Y, Z-axis guide way	Three-hard track	Three-hard track
Feed rate	8	8
Moving speed	15	15
Repeatability	0.005	0.005
Three-axis positioning accuracy	0.006/300	0.006/300
Spindle speed(rpm)	6000	6000
Drive power(Kw)	15/18	15/18
Spindle shank	BT50--Φ155	BT50-Φ190
Magazine structure	Robotic disc magazine	Robotic disc magazine
Tool storage capacity	24	24
X.Y.Z axis ball screw specifications	5010	5508
Power Capacity	25	25
Machine tools gas source	0.5-0.7	0.5-0.7
Net / Gross	11/13	15/17
Control System	FANUC OI-MD	FANUC OI-MD

This information is for reference only, the specific parameters and functions to the product specification shall prevail. The company the right to alter product design and specifications of the reservation, when without notice.
